Leírás

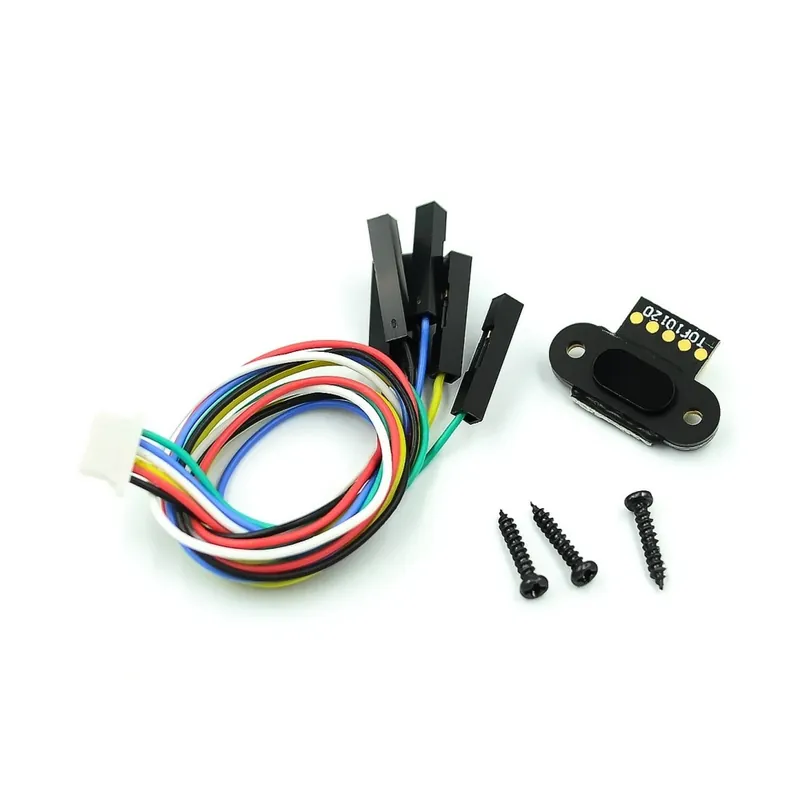

TOF10120 10-180 cm távolságérzékelő RS232 interfész UART I2C IIC kimenet 3-5V Arduinohoz kábeles lézer hatótávolság-érzékelő modullal
TOF10120 10-180cm Distance Sensor RS232 Interface UART I2C IIC Output 3-5V for Arduino With Cable Laser Range Sensor Module
Parameter:
Type: TOF10120
Robot (obstacle detection) cleaning robot, human body detector, amusement equipment
High speed auto focus
Video continuous autofocus
User detection PC/laptop/tablet
White Home appliance(manual automatic detection of faucets, bathroom equipment, lighting control refrigerators), etc..
Cable: spacing 1.0mm 6P single head line length 20cm
USB serial port TTL read distance data passed
Power supply 3~5V
Ground GND (RXD-TXD) (TXD-RXD)
rduino board connection distance sensor, UART read distance data through RXD-TXD, I2C read distance data through A4-A5, UART read to remove A4-A5 Ardunio code upload program, to remove the module after uploading successfully and then connect to Arduino Code UART, one for each I2C
