Leírás
1 db M8 2mm érzékelő DC 5V NPN NC LJ8A3-2-Z/AX-5V henger induktív közelségérzékelő kapcsoló munkafeszültség 5VDC speciális MCU-hoz

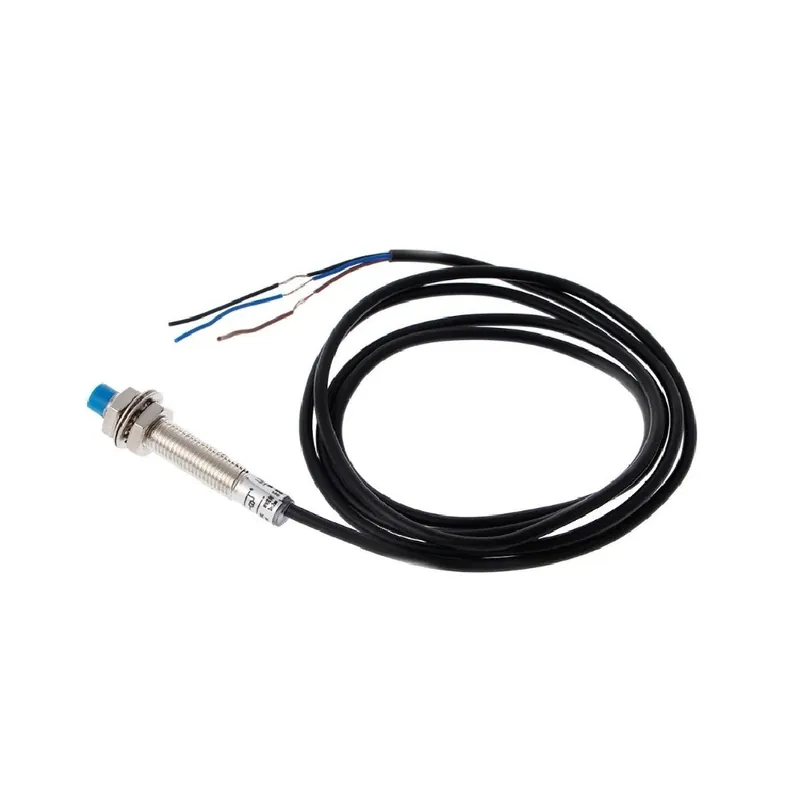

1PC M8 2mm Sensing DC 5V NPN NC LJ8A3-2-Z/AX-5V Cylinder Inductive Proximity Sensor Switch Work Voltage 5VDC Special For MCU
Sensor model: [LJ8A3-2-Z/AX-5V]
Cable specification: [3*12 120CM three line brown line positive blue line negative pole black line signal control]
Output mode: [three line NPN constant low level]
Detection distance: [2 millimeter]
Input voltage: [5V DC voltage]
Output maximum current: [300mA Ma]
Turn on delay: [1.5ms]
Light source: [infrared 660nm]
Insulation impedance: [50M Omega] (DC500 megabytes)
Between the charge part and the shell
Withstand voltage: [AC1000V 50/60Hz 1min charging part and enclosure]
