Leírás
Új ME-8108 állítható görgős kar pillanatnyi MELIFE végálláskapcsoló görgőkar 1NC 1NO

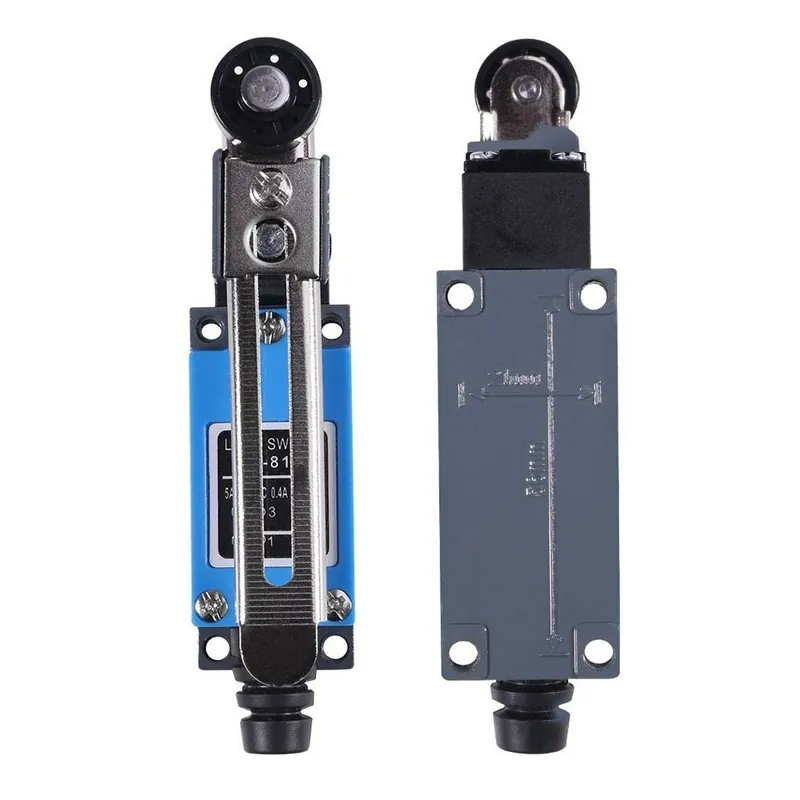

New ME-8108 Adjustable Roller Lever Arm Momentary MELIFE Limit Switch Roller Lever 1NC 1NO
Product description
Specification:
Product Name: Limit Switch
Model: ME-8108
Actuator Type: Plastic Wheel Adjustable Roller Lever Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC
Contact Configuration: 1NC 1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5
Mounting Hole Distance: 56 x 21mm / 2.2″ x 0.83″ (L*W)
The stroke in the operating direction is as large as 90¡ã.
The roller lever limit switches are applied to a wide range of applications including object positioning and detection.
The length of the lever is adjustable.
Operating Characteristics:
OF MAX.: 800g (7.84N)
RF MIN.: 60g (0.59N)
PT MAX.: 30¡ã
OT MIN.: 60¡ã
MD MAX.: 15¡ã
TT: 90¡ã
Package Included:
1 * ME-8108 Momentary AC Limit Switch
