Features:
1: Various Choices: Customers can choose what they need according to different needs.
2: Multi-Purpose: Wide range of uses.
3: Safety: High safety performance.
4: Easy to operate: Easy to understand and easy to operate.
5: Protection: Battery overvoltage protection.
Specification:
LED indicator: ”CR” LED indicates charging status
”OK” LED is fully charged or in constant voltage mode,
Working ambient temperature -40°C to +85°C
Size: about 39x18x6.3mm/1.53×0.71×0.25inch
Scope:

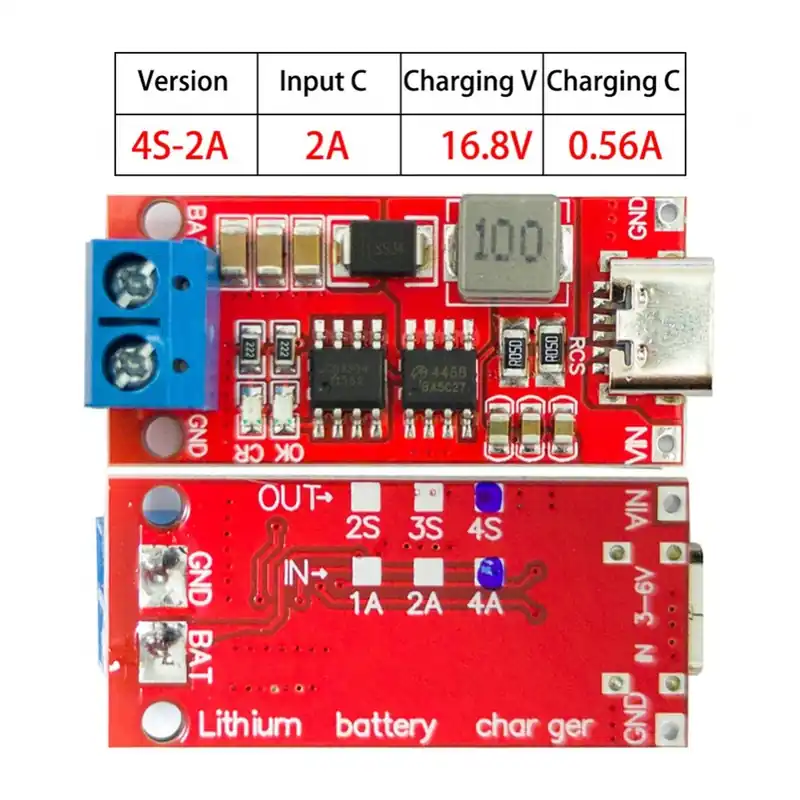

2-Cell(2S) 8.4V version:
Input voltage: DC 3-6V (recommended DC 3.7V 5V)
Input current: 1A(1A Version),2A(2A Version),4A(4A Version)
Charging voltage : 8.4V
Charging current: 0.55A(1A Version),1.1A(2A Version),2.2A(4A Version)
3-Cell(3S) 12.6V version:
Input voltage: DC 3-6V (recommended DC 3.7V 5V)
Input current: 1A(1A Version),2A(2A Version),4A(4A Version)
Charging voltage: 12.6V
Charging current: 0.37A(1A Version),0.74A(2A Version),1.48A(4A Version)
4-Cell(4S) 16.8V version:
Input voltage: DC 3-6V (recommended DC 3.7V 5V)
Input current: 1A(1A Version),2A(2A Version),4A(4A Version)
Charging voltage: 16.8V
Charging current: 0.28A(1A Version),0.56A(2A Version),1.12A(4A Version)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Lithium Battery Module
