A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

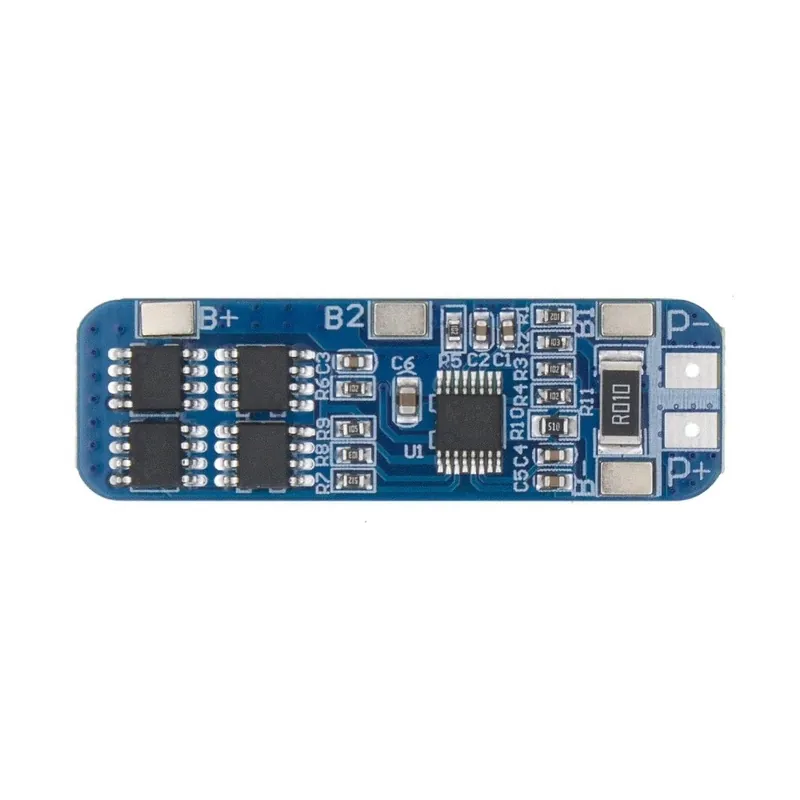

3S 12V 18650 10A BMS töltő Li-ion lítium akkumulátor védőkártya áramköri lap 10,8 V 11,1 V 12,6 V elektromos
3S 12V 18650 10A BMS Charger Li-ion Lithium Battery Protection Board Circuit Board 10.8V 11.1V 12.6V Electric
Specification:
Brand new
Size: approx.50x16x1mm
Maximum discharge current: 10A
Overcharge detection voltage: 4.25-4.35V±0.05V
Over-discharge detection voltage: 2.3-3.0V±0.05V
Maximum working current: 5A-8A
Transient current: 9A-10A
Operating temperature: -40~50°
Storage temperature: -40~80°
Quiescent current: ＜6uA
Internal resistance: ＜60mΩ
Service life: ＞30,000 hours
Feature:
Short circuit protection.
Overcharge protection.
Over-discharge protection.
Overcurrent protection.
Can be applied to various 3.7V lithium core.
Compact size and lightweight.
Fine workmanship and durable.
Ensure the security of battery pack.
Suitable for:
10.8V (Rated voltage of polymer battery)
11.1V (18650 or 3.7V lithium battery rated voltage)
12.6V (Lithium battery full charge voltage)
Note:
Please allow 1-5mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
