A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

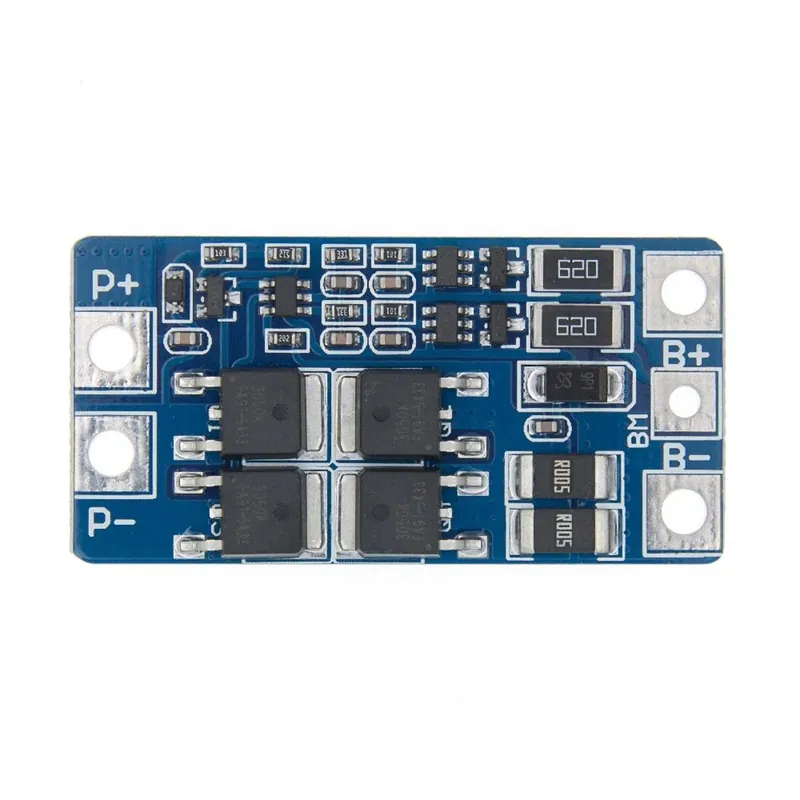

2S 10A 7.4V 18650 lítium akkumulátor védőkártya 8.4V kiegyensúlyozott funkció/túltöltés elleni védelem
2S 10A 7.4V 18650 lithium battery protection board 8.4V balanced function/overcharged protection
Properties of the lithium battery protection board:
Model: HX – 2S – JH20 overcharging range: 4.25-4.35 v plus or minus 0.05 v
Size: 46.7 * 23 * 3.15mm over voltage range: 2.5-3.0 v plus or minus 0.05 v
Maximum working current: 10 a working temperature: – 40 – 50 °
Maximum instantaneous current: 20 a storage conditions: – 40 – 80 °
Static current: less than 10uA effective life: more than 50,000 hours
Resistance: less than 300 m Ω short circuit protection: to protect and restore must charge
Charging voltage: 8.4 v-9v
The protection board size and device description;
The protective plate size is 46.7 * 23 * 3.15mm
Welding point description:
· B battery anode;
· B – connect battery negative terminal;
· MMB connect battery 1 to battery 2;
· P charging/discharge correct poles (charging end/discharge end sharing);
· P – charging/discharge terminal negative terminal (charging end/discharge end sharing).
