Leírás
2S 8A Li-ion 7.4v 8.4V 18650 BMS PCM 15A csúcsáram akkumulátorvédő tábla BMS Pcm Li-ion lipo akkumulátor cellacsomaghoz

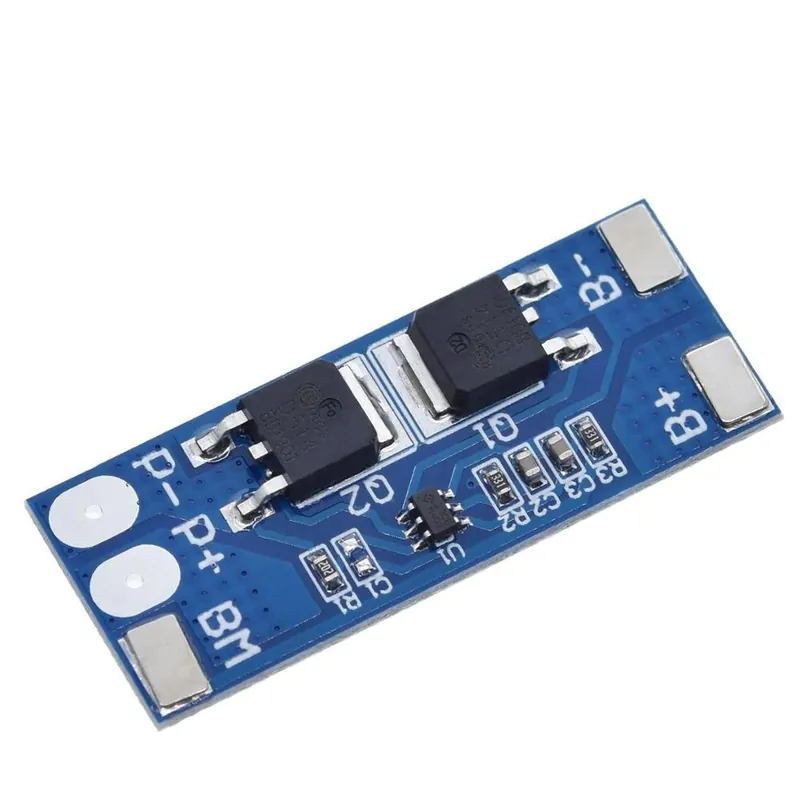

2S 8A Li-ion 7.4v 8.4V 18650 BMS PCM 15A Peak Current Battery Protection Board BMS Pcm For Li-ion Lipo Battery Cell Pack
Properties of 2 series 6.4v lithium iron phosphate protective plates:
Model: hx-2s -D01 over charge pressure range: 3.65v 0.05v
Size: 41*16*3.5mm over discharge voltage range: 2.0-2.5v plus or minus 0.05v
Maximum working current: 8 a working temperature: – 40 – 50 ℃
Maximum instantaneous current: 10 a storage conditions: – 40 – 80 ℃
Static current: less than 10uA effective life: more than 50,000 hours
Resistance: less than 300 m Ω short circuit protection: to protect and restore must charge
Charging voltage: 7.2v – 8.4v
2 strings of 7.4v lithium battery protection panel properties:
Model: hx-2s -D01 overcharge pressure range: 4.25v 0.05v
Size: 41*16*3.5mm over discharge voltage range: 2.9v plus or minus 0.05v
Maximum working current: 8 a working temperature: – 40 – 50 ℃
Maximum instantaneous current: 10 a storage conditions: – 40 – 80 ℃
Static current: less than 10uA effective life: more than 50,000 hours
Resistance: less than 300 m Ω short circuit protection: to protect and restore must charge
Charging voltage: 8.4v -9V
Welding point description:
· B connect the positive electrode of the battery;
· b-connect the battery cathode;
· MB connection points before battery 1 and battery 2;
· P charging/discharging positive pole (common at charging end/discharging end);
· p-charge/discharge end negative pole (common at charging end/discharge end).
Package included :
1 piece
