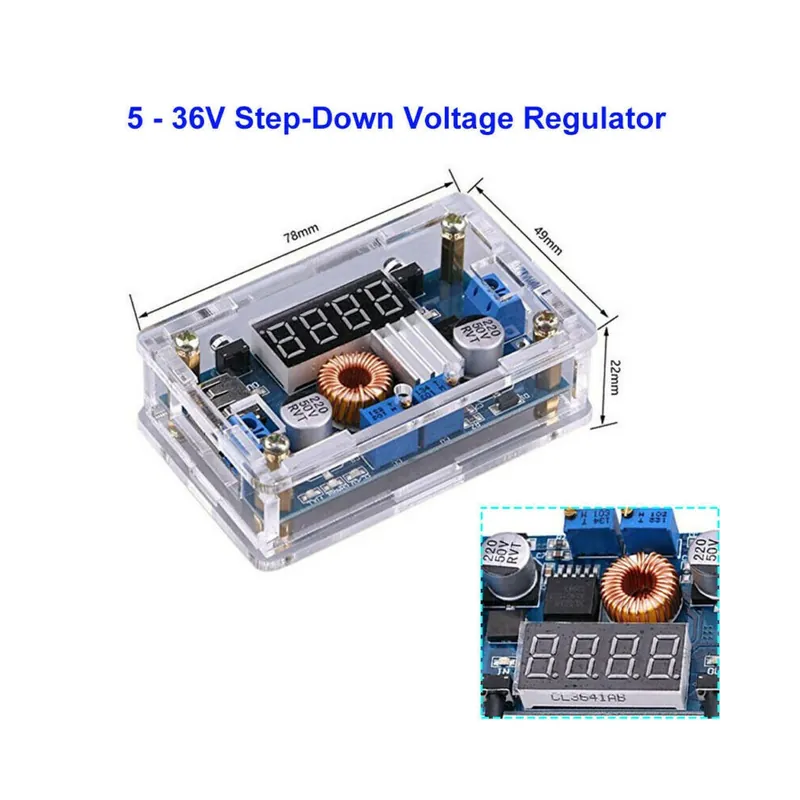

1pc Digital Display 5-36V DC 180 KHz Voltage Controller Converters 78x49x22mm
Features:
*100% brand new and high quality
*With this handy DC /DC converter you can use 12V LED lamps in your car, camper etc. use and regulate the voltage of the battery for the lamps to exactly 12V to avoid overload
*The DC /DC voltage controller works with an input voltage of 5-36V and suitable for a number of applications. In addition, the DC /DC converter has a USB connection for charging smartphones, etc.
*2 in 1 DC /DC downward converter, voltage regulator for 5 -36 V DC with USB charging function which automatically switches off when the battery is fully charged, or as power supply for 12 -V LED lighting in the automotive area
*The output voltage (1,25 -32V) and the output current can be adjusted and limited with different adjustment screws
*The converter has a digital display indicating the input and output voltage, the current and the power. The display can be controlled by two push buttons
Specifications:
*Input voltage: 5 -36V DC (plus and minus)
*Output voltage: 1.25 -32 Volt DC (set to 12 V factory side)
*Output current: 3A (max. 5A cooling required)
*Power: 35W (max. 50W requires cooling)
*Working temperature: 40degree Celsius to 85degree Celsius
*Working frequency: 180 kHz
*Performance factor: up to 96%
*Connections: 2 screw terminal and 1 USB connection
*Dimension: 78*49*22mm (Approx.)
Package Contents:
1*Voltage Controller
