Leírás
TDA7266 audio sztereó erősítő modul bővítő kártya hangszóróhoz HIFI audio kártya kétcsatornás erősítő modul

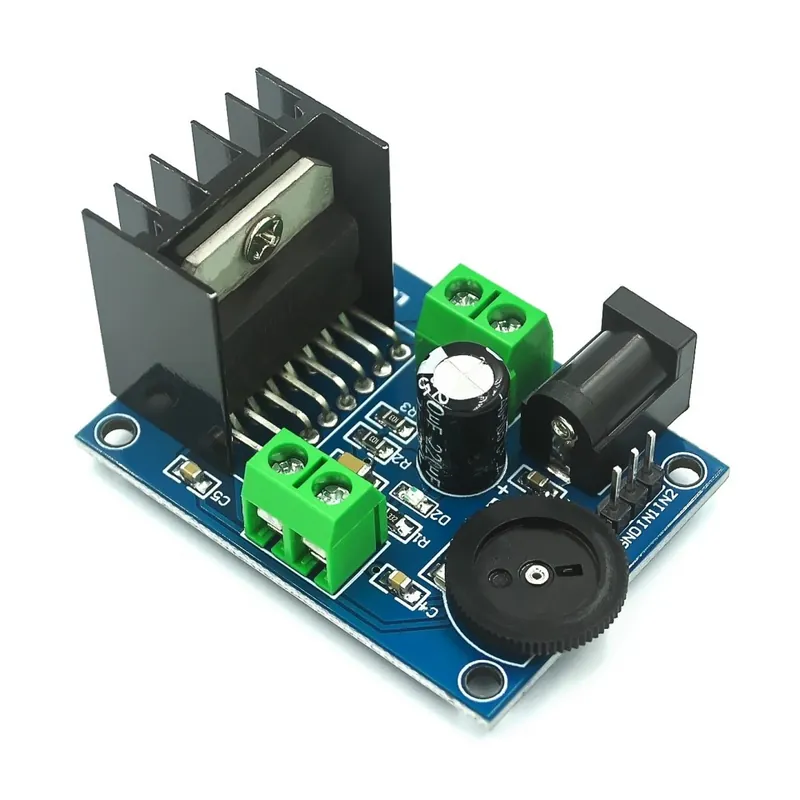

TDA7266 Audio Stereo Amplifier Module Expansion Board For Speaker HIFI Audio Board Dual Channel Amplifier Module
Description:
1. On-board TDA7266 audio power amplifier chip, double track 7W 7W, suitable for 4-8ohm 5-15W speakers
2. The main pin has led chip, convenient external device control, on-board 2 way 5.08(mm) pitch 2P terminal, represent left and right channel output
3. The on-board dial potentiometer, can adjust the output volume
4. Support DC socket, terminal blocks, row needles 3 power input mode, the default is DC socket, working voltage: 3-18V
5. The board size: 52(mm)x33(mm)
