Great IT 4S 8A Polymer Li-ion Lithium Battery Charger Protection Board For 4 Serial 4pcs 3.7 Li-ion Charging Protect Module BMS
1.Model:4 serial 14.8V 8A protection board
2.Size:18*53*3mm
3.Operating Current:0.5A-8A
4.Overcharging Protection Voltage:single cell 4.20V /-0.025V
5.Overdischarging Protection Voltage:single cell 2.50V /-0.1V
6.Short Circuit Protection:yes
7.Application Fits:3.7V cell/4 serial
8.Load Power:

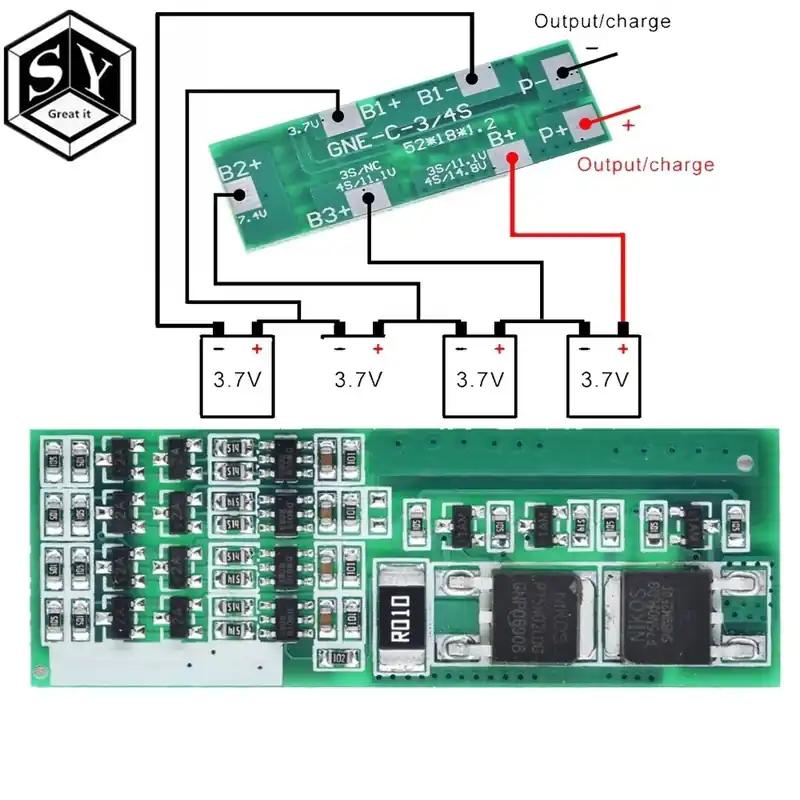

1.First solder B-,then solder B1 ,to B2 ;next B3 ,finally solder B
2.Output port P-,P ,the soldering sequence is casual
3.When soldering protection board,the touch time between soldering iron and protection board should not be too long,within 1.5s is the best
