Leírás
Új 10-50V 60A nagy teljesítményű HHO RC meghajtó motorvezérlő PWM vezérlő modul 12V 24V 48V 3000W hosszabbító kábel kapcsolóval

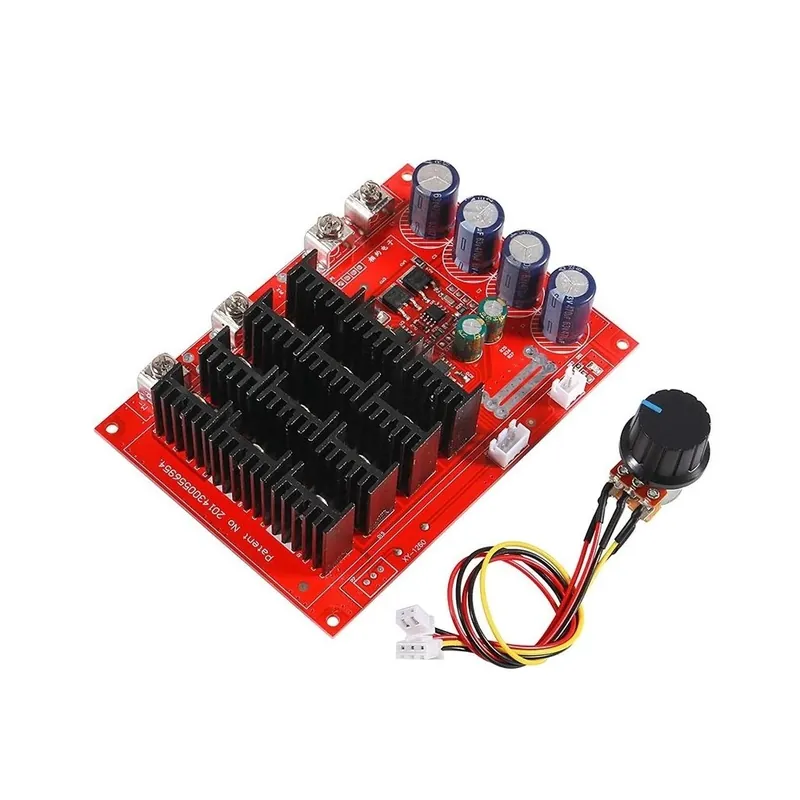

New 10-50V 60A High Power HHO RC Driver Motor Controller PWM Controller Module 12V 24V 48V 3000W Extension Cord With Switch
Description:
Parameters:
Working Voltage: DC10V-50V
Control Power: 0.01-3000W
Max Rated Current: 60A
Different Working Voltage Corresponding to Different Control Power:
12V: 12V*60A =720W (max)
24V: 24V*60A =1440W (max)
36V: 36V*60A =2160W (max)
40V: 40V*60A =2400W (max)
50V: 50V*60A =3000W (max)
Quiescent Current: 0.04A (When the working voltage is DC10V-50V, the quiescent current cannot exceed 40ma)
PWM Duty Ratio: 5% -100%
PWM Frequency: 15 kHz
Working Temperature:-20¡ãC -40¡ãC
Applications:
– Universal DC brush motor speed regulation.
– Car motor speed regulation (car cooling fan speed regulation, car automobile fan speed regulation, car windshield motor speed regulation, car air conditioning fan speed regulation).
– Production line conveyor belt speed regulation, pipe exhaust fan speed regulation, treadmill speed control, multiple computer fans parallel speed regulation, electronic fan speed regulation.
– DC light dimmer, DC heater tempering.
Package Includes:
1* Motor Speed Control Board
1* Extension Cable with Switch
