Leírás
A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!
Új Smart Electronics Digitális mobil tápfeszültség töltőáram feszültségmérő mérő USB teszter

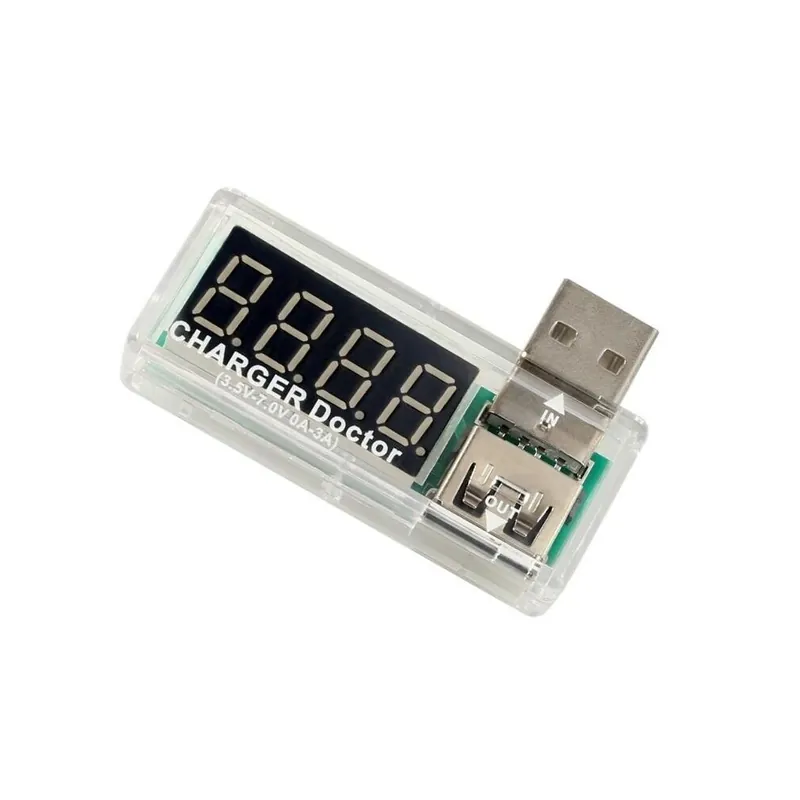

New Smart Electronics Digital Mobile Power Charging Current Voltage Tester Meter USB Tester
Scope of work: Current (0-2.5A) can detect standard mobile phone charger voltage DC5V
Operating Range: U = 3 ~ 7.5V I = 0 ~ 2.5A
Resolution: Voltage 10mV Current 10mA
Error: voltage <± 1% // current <± 2%
Full scale drop: (when measuring current) 200mV
Working temperature: 0-60 Celsius
Product size: 53 * 35 * 14mm
The tester uses a new generation of power four and a half double integral cycle conversion IC, with a precision bandgap reference, range accuracy, high precision, stable and reliable performance, strong anti-interference ability, high temperature can be used for measuring USB powered or power consumption of an interface, cell phone chargers, U disk and other products.
It can be used to measure the empty USB-powered devices, voltage loads, USB terminal equipment working voltage and current.
Current and voltage cycle, easy to use and practical.
Compact and easy to carry, no additional power supply
1005003658177715/3 – modules
