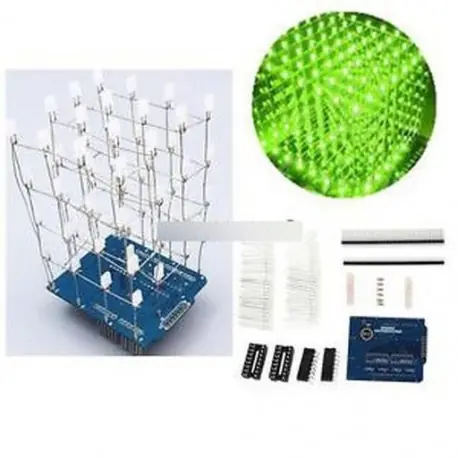

Green 4X4X4 Light Cube Kit Arduino uno shield LED Precise DIY Kit
DIY Kit 4X4X4 Light Cube Kit Green Arduino shield LED Precise4x4x4 Light Cube kit uses 64 cuboid LED,and controlled by Arduino. Expansion board uses two 74HC595 shift register chips, using eight I/Os can light the 4x4x4 Light Cube,it’s hardware resources needed is less than other 4x4x4 light cubic expansion board(needs 20 I/Os to control).1. Circuit Description
The display part of 4x4x4 Light Cube kit consists of 64 cuboid LED,uses two 74HC595shift register chip to control LED anode, the 4 I/O ports of Arduino controls 4 common cathodes of LED.2. Electrical parameters
Control module:arduino control board
PCB size:61*74mm
LED D16~D19 slot is used for inserting the LED cathode.
Expansion board and Arduino control pins.
74HC595 pin arduino
SH 0
ST 1
OE 2
DS 3
D16 4
D17 5
D18 6
D19 76. Components list
Package included 1PCS x 4X4X4 3D Light Cube Kit Arduino Shield LED
