Leírás

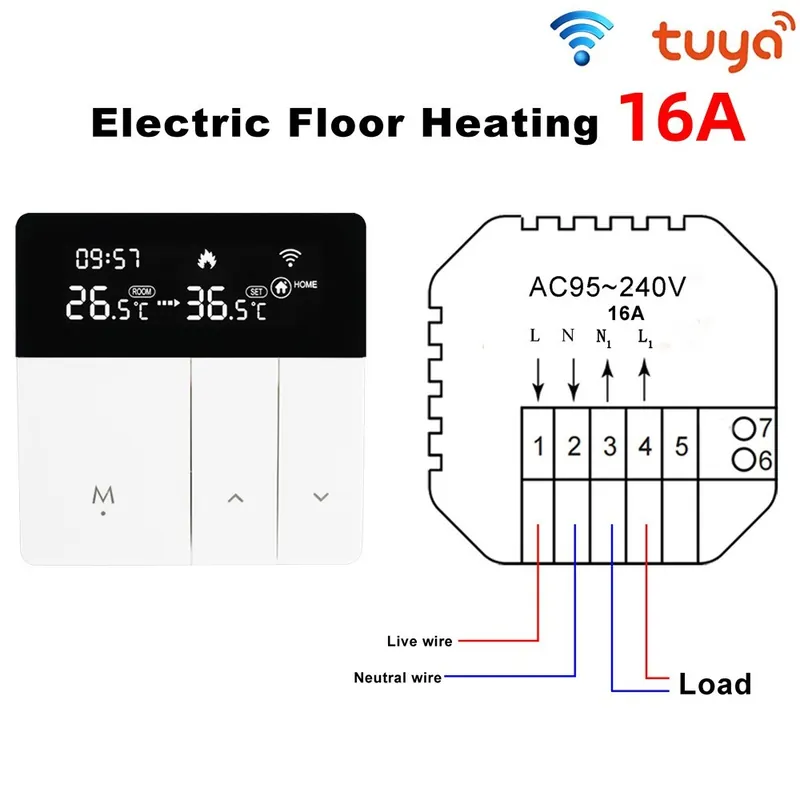

I8H-GB-WIFI- for Electric Heating, Max 16A
I8H-GC-WIFI- for Gas Boiler Heating, Max 3A
I8H-GA-WIFI- for Water Heating, Max 3A
Technical Datas
– Power Supply: AC95~220v,50/60Hz
– Temperature setting: 5~60°C
– Display range: 0~51°C
-Temperature Display Accuracy: ±1?
– Working environment:-5~50C
– Sensor: NTC 10K
– Self-consumption power: <1W
– Shell material: PC+ABS (flame retardant)
– Installation Hole distance: 60mm (Suit with EU standard round mounting box).
– Dimension: 86x86x43mm
Thermostat Functions
1. Memory Function
Memorize all your settings after sudden power-off. When power is on again, you do not need to reset it.
2. Programmable Function
Support 5+2, 6+1 or 7 days Weekly Programmable, six periods programmable controlling temperature setting.
3. I8H-GB-WIFI has Inner and external two sensors. 3 meters external sensor cable is included.
I8H-GC-WIFI and I8H-GA-WIFI has Inner Sensor.
4. Childrem Lock Function
Lock the thermostat to avoid misoperating by Children.
5. Wifi function
The wifi thermostat can be controlled by Mobile APP wherever you are.
6. Support to be voice control by Alexa.
Package Includes
1 X thermostat
1 X 3 meters external sensor—GA(water type)andGC(boiler type)not included
2 X screws
1 X English user manual
Thermostat Details
Thermostat Applications
