Set Connector Terminal Measuring Hole Wires Accessory 20pcs Spring New
Detail:

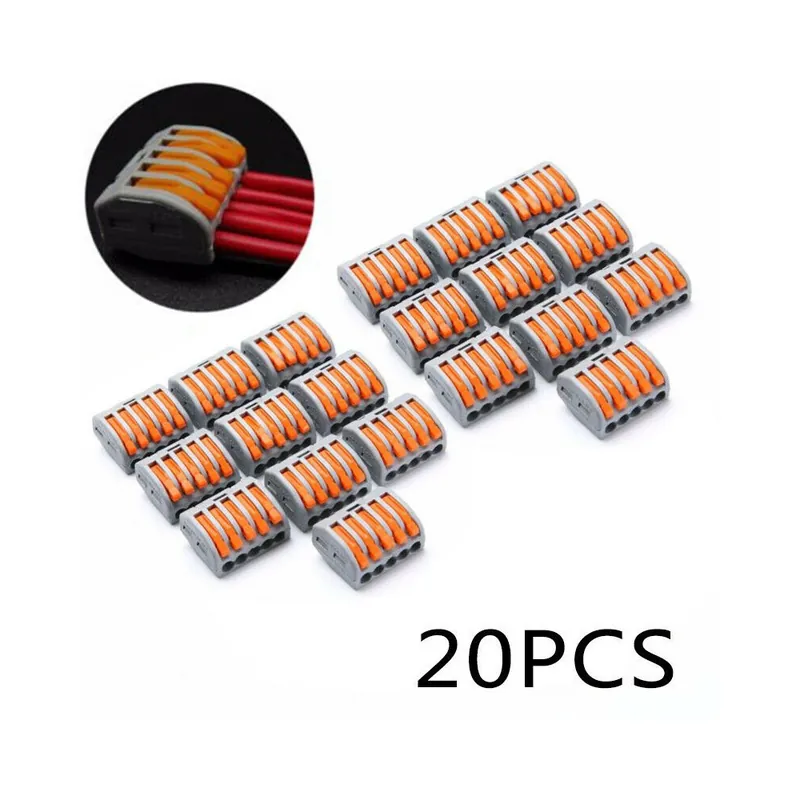

*5 Way Spring Lever Terminal Block Electric Cable Wire Connector
*Convenience test hole for measuring the voltage without removing tape.
*Quick-direct plug, plug the wrong can be pulled out,followed again.
*Each contact shrapnel independent, fits different wire diameter.
*Item Condition:100% Brand New
*Color: Gray Orange(As Pictures Show)
*Type: 5 Way
*Stripping wire length : 9-10mm
*Solid conductor size 0.08 to 2.5 mm² /AWG 14,
Stranded conductor size 0.08 to 2.5 mm² /AWG 14,
Flexible conductor size 0.08 to 4 mm² /AWG 28 – 12
*Max. Voltage: 400 V
*Rated Current: 32 A
*Withstand impulse voltage: 4KV
*Dimension:20.5 x 12.4 x 14.5mm(Approx.)
*Continuous Working Temperature(Max.) : 85°C
Package Contents:
20* Connector Terminal
Notes: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
