Leírás
20db CH341A modul CH341A 24 25 sorozat EEPROM Flash BIOS USB programozó modul EEPROM 93CXX / 25CXX / 24CXX számára

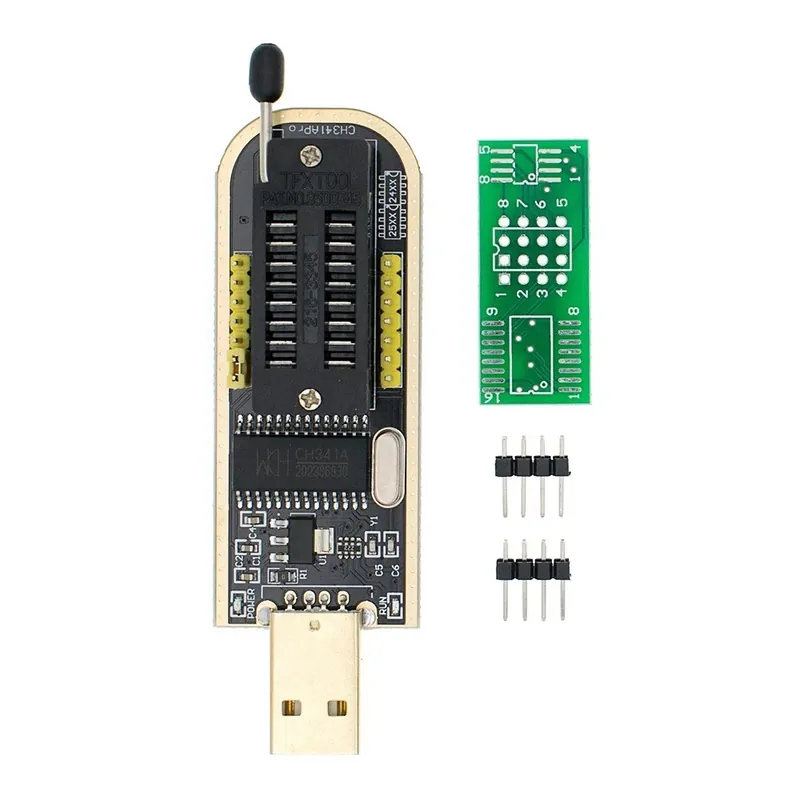

20pcs CH341A module CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module For EEPROM 93CXX / 25CXX / 24CXX
USB Programmer
Condition: New
Support 24EEPROM and 25 SPI flash 8pin/16pin chip
USB to TTL port, can getroot online
With CH341A chip
Recognize 25 series chip automatically
And support download STC series procedure of singlechip
With 24/25 status indicator lamp
SPI pin to support expanding the utility
Color is shown as pictures
PLS NOTE that due to lighting effects, monitor’s brightness/ contrass settings ect, there could be some slight differences in the color tone of the pictures and the actual item!
Provide 5V-3.3V power supply output
Dimension:70mm x 27mm
