Leírás
A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

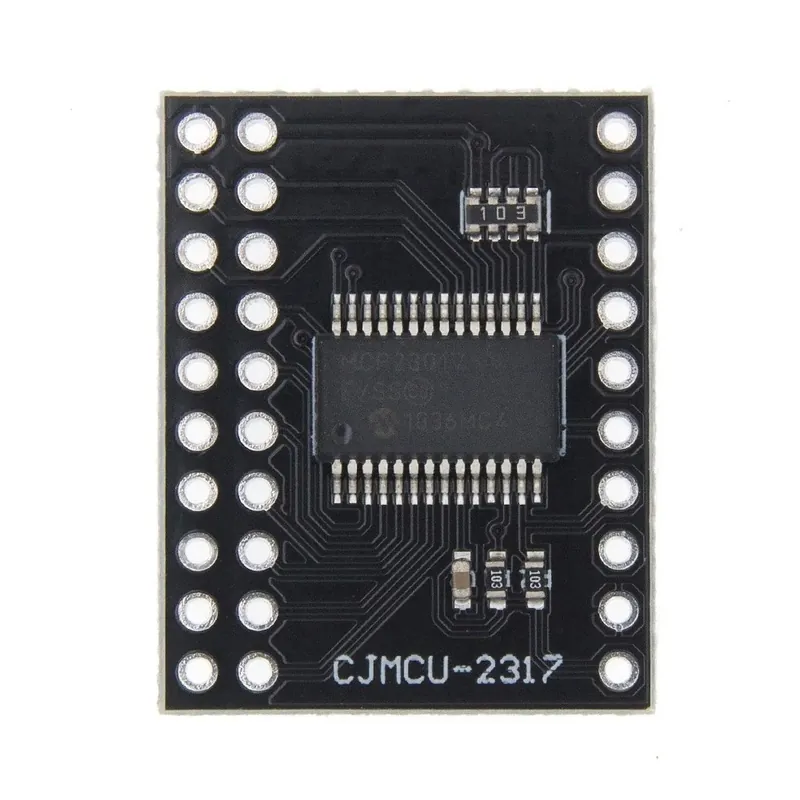

MCP23017 soros interfész modul IIC I2C SPI MCP23S17 kétirányú 16 bites I / O bővítő csapok 10 MHz-es soros interfész modul
MCP23017 Serial Interface Module IIC I2C SPI MCP23S17 Bidirectional 16-Bit I/O Expander Pins 10Mhz Serial Interface Module
16-Bit Remote Bidirectional I/O Port:
– I/O pins default to input
• High-Speed I2C Interface (MCP23017):
– 100kHz
– 400kHz
– 1.7MHz
• High-Speed SPI Interface (MCP23S17):
– 10 MHz (maximum)
• Three Hardware Address Pins to Allow Up to
Eight Devices On the Bus
• Configurable Interrupt Output Pins:
– Configurable as active-high, active-low or
open-drain
• INTA and INTB Can Be Configured to Operate
Independently or Together
• Configurable Interrupt Source:
– Interrupt-on-change from configured register
defaults or pin changes
• Polarity Inversion Register to Configure the
Polarity of the Input Port Data
• External Reset Input
• Low Standby Current: 1 μA (max.)
• Operating Voltage:
– 1.8V to 5.5V @ -40°C to 85°C
– 2.7V to 5.5V @ -40°C to 85°C
– 4.5V to 5.5V @ -40°C to 125°C
