Product Description:
Serial number module pin pin description
1 GND power source
2 5V power positive (5V)
3 3V3 power source positive (3.3V)
LCD_RST module reset signal, low level reset
LCD_CS module chip selection signal, low level enable
LCD_RS module command/data selection signal, low level selection command, high level selection data
7 LCD_WR module writes the control signal
8 LCD_RD module reads the control signal
9 LCD_D0
Module 8 bit parallel data bus 0-7 bit signal
10 LCD_D1
11 LCD_D2
12 LCD_D3
13 LCD_D4
14
LCD-DIY
LCD_D5
Packing list:

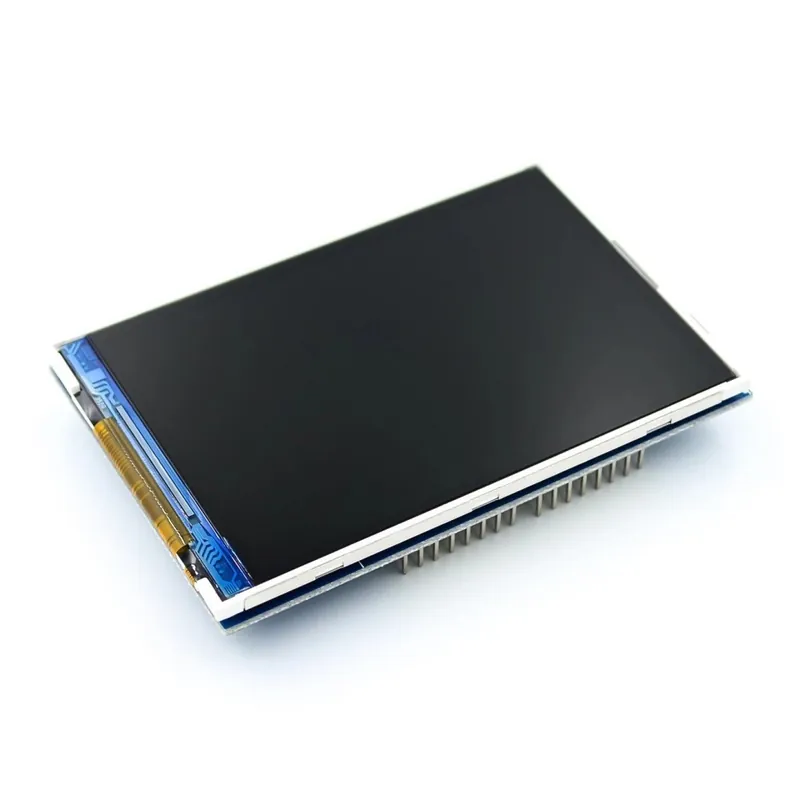

1 * LCD Screen with Touch Panel
or
1 * LCD Screen without Touch Panel
(Based on your option)
