Leírás
A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

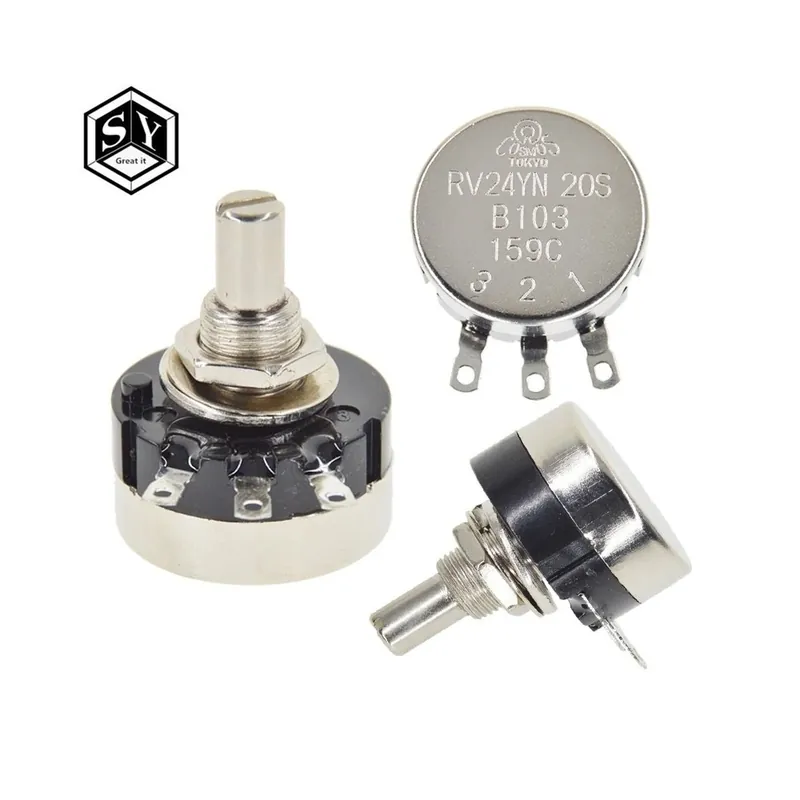

RV24YN20S single turn carbon film potentiometer
Shaft diameter: 6mm.. shaft end slot
Standard shaft length: 20mm
Outer diameter: 24MM
Standard resistance range: B 500Ω -1MΩ.
Resistance tolerance: ±10%
Mechanical stroke: 300 ° ± 5 °
Temperature range: -10 ° C – 85 ° C
Rotation life: 20,000 rpm
Power: 2W
RV24YN20S B201 B501 B102 B202 B502 B103 B203 B503 B104 B204 B254 B504 B105 500 ohm 10K 20K 50K 100K 200K ohm Potentiometer
RV24YN20S 200 ohm =B201
RV24YN20S 500 ohm =B501
RV24YN20S 1K ohm =B102
RV24YN20S 2K ohm =B202
RV24YN20S 5K ohm =B502
RV24YN20S 10K ohm =B103
RV24YN20S 20K ohm =B203
RV24YN20S 50K ohm =B503
RV24YN20S 100K ohm =B104
RV24YN20S 200K ohm =B204
RV24YN20S 250K ohm =B254
RV24YN20S 500K ohm =B504
RV24YN20S 1M ohm =B105
