Leírás

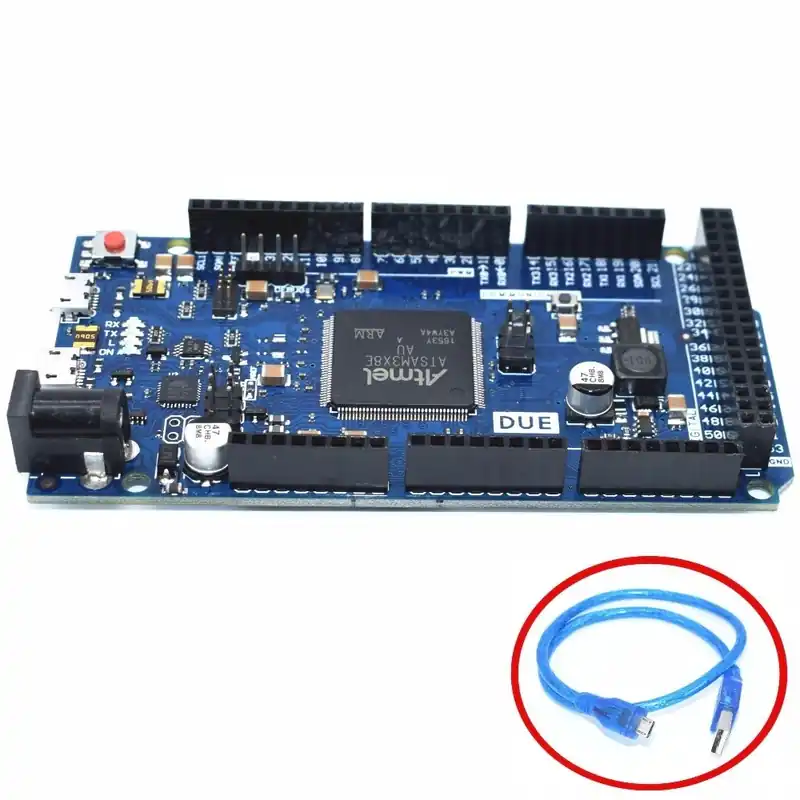

Due 2012 R3 ARM Verzió fő vezérlőkártya ATSAM3X8E ARM fő vezérlőkártya USB kábellel
Due 2012 R3 ARM Version Main Control Board ATSAM3X8E ARM Main Control Board with usb cable
With Logo
Reminders:
1) Due board runs at 3.3 V. The maximum voltage that the I/O pins can tolerate is 3.3 V. Providing higher voltages, like 5V to an I/O pin could damage the board.
2) ARM core strengths: The use of 32-bit ARM core is more powerful than th previous use of the other Iduino core 8 AVR.
The main differences are:
• 32 bits at a clock can process 32 bits of data.
• CPU clock frequency of 84 MHz
• 96 SRAM KBytes
• 512 Flash KBytes
• A DMA controller, can reduce the pressure on the CPU to do a lot of computing
Specifications:
• Microcontroller: AT91SAM3X8E
• Operating voltage: 3.3 V
• Input voltage (recommended): 7 – 12 V
• Input voltage (limits): 6 – 16 V
• Digital I/O pins: 54 (of which 12 provide PWM output)
• Analog input pins: 12
• Analog outputs pins: 2 (DAC)
• Total DC output current on all I/O lines: 130 mA
• DC current for 3.3 V pin: 800 mA
• DC current for 5 V pin: 800 mA
• Flash memory: 512 KB all available for the user applications
• SRAM: 96 KB (two banks: 64 KB and 32 KB)
• Clock speed: 84 MHz
32865067523 – tenstar
