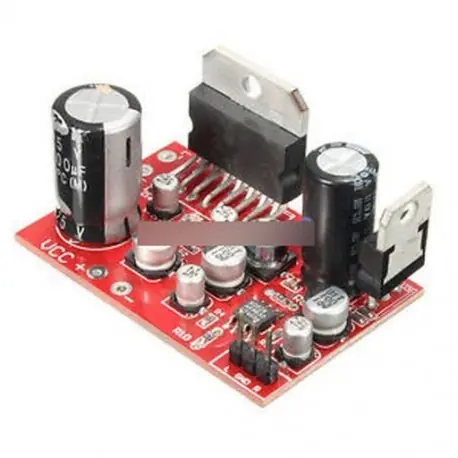

DC 12V TDA7379 38W 38W Stereo Amplifier Board w/ AD828 Preamp super than NE5532 Features:Use new imported TDA7379 amplifier chip, with fever AD828 preamp.
R8, R10 is the magnification setting resistor (default delivery is about 2-3 times magnification, according to their need to change the magnification from 10k-47k resistor between select, the greater the resistance, the higher the zoom factor, if it is used plug-in resistors, chip resistors can take down the original, the plug-in resistance welding position on the patch ends of the pad)
Preamp input and output coupling capacitors Promise of imports fever capacitance, better than the polarity effect.
Maximum output power: 39W X 39W
Operating voltage: DC 9-17.5V
Board dimensions: length 50mm width 33mm
Note: This section is amplifier board without fins, amplifier board in front of the test machine must be added a large enough heat sink.
Package included:1x TDA7379 Amplifie
