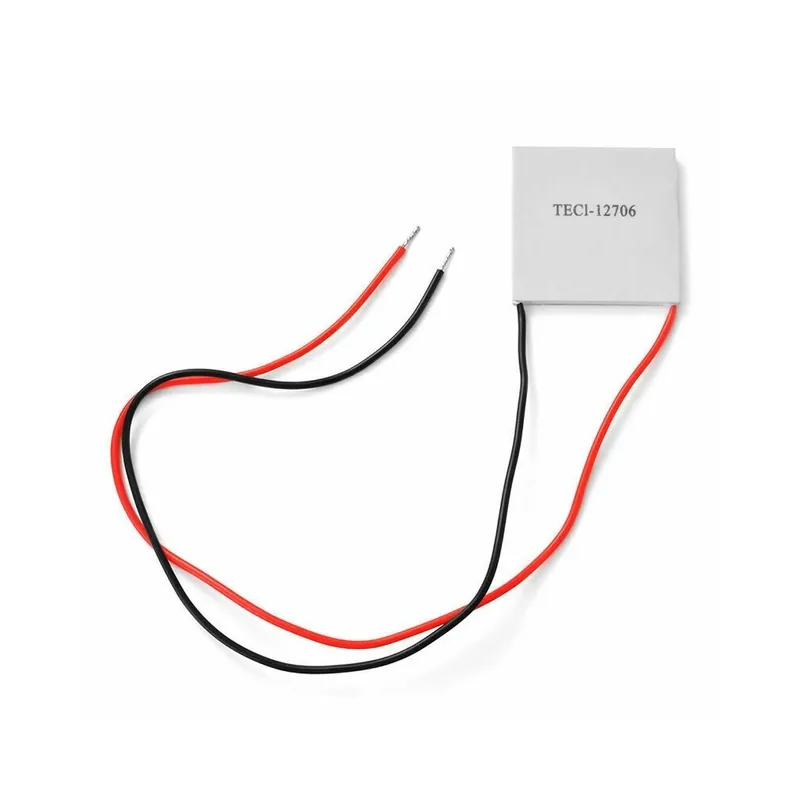

TEC1-12706 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module D X5 H2Q8
Description:Description:Chip: TEC1-12705
Dimension: 40 * 40 127 * 3.8 mm components logarithmic
Wire specifications: 100 / – 5 mm long RV lead wire single head 5 mm tin plating
Internal resistance value: 2.4 ~ 2.7 Ω (23 / – 1 â„, environment temperature 1 KHZ Ac test)
The largest temperature difference: delta Tmax (Qc = 0) more than 61 â„.
Working current: Imax = 5 (rated voltage startup)
Rated voltage: DC12V (Vmax: 15.5 V)
The refrigeration power: Qcmax 45 w
The assembly pressure: 85 n/cm2
Working conditions: temperature range and 55 â„ ~ 83 â„ (high environmental temperature will directly affect the cooling efficiency)
Encapsulation process: standard around 704 silicone rubber seal
Packing: bubble box packing, storing conditions – 10 â„ to 40 â„ ambient temperature
Storage conditions: – 40 ~ 60 â„
SKU:BS0004
