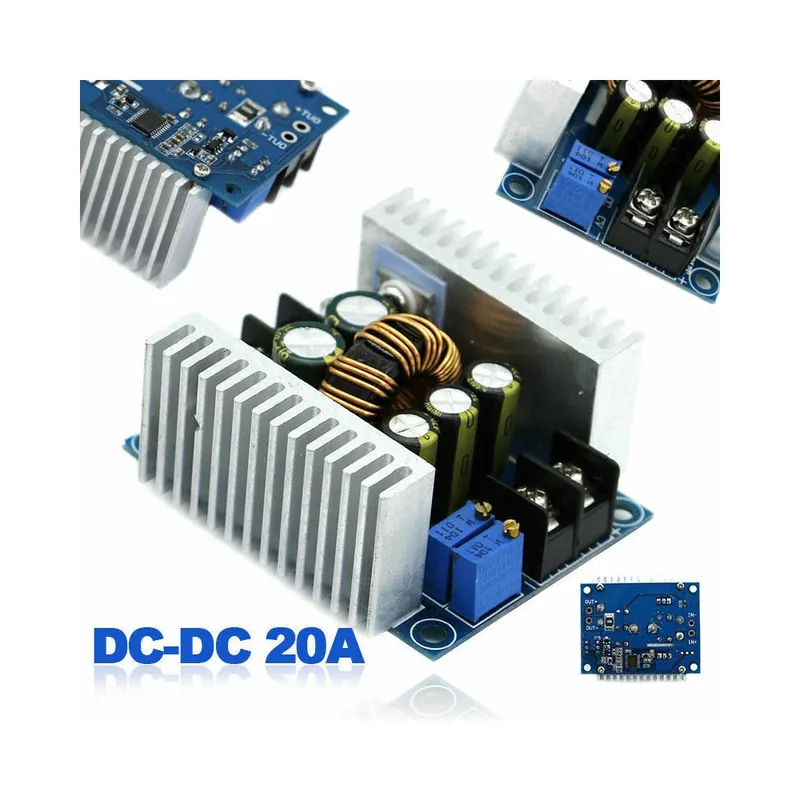

Nicknocks 300W DC- DC Converter Step-up Step-Down Boost Power 20A Adjustable 1 X
Features:
*100% Brand new and high quality
*Made of high quality material, more durable.
*Electrolytic capacitor high frequency of low resistance, Low resistance, stable output.
*75 V / 80A is designed with large double mos Tube.
*The Efficiency can be up to 96% , measured in 20a, convert 24 V to 12 V.
*With a wide range of Input Voltage of 6 V to 40 V. the Converter Reducer can accurately adjust the Output Voltage and current.
*The Buck has 2 Module Heat Sink could improve the heat dissipation.
*When the input and output are common to Earth, Constant Voltage Output CV without load, Constant Current DC OUTPUT.
*Positive output Vo , Vo: negative output, : Positive input, -: negative input, HP: adjustment of Output Voltage, CC: adjustment of Output Current
Specifications:
*Input Voltage: 5 V to 40 V DC (10 V to 40 V. recommended)
*Output Voltage: 1.2 V to 36 V DC
*Output Current: 20a (max.), 15th (recommended)
*Efficiency: 95% (24 V to 12 V, 20a)
*Working Frequency: 150KHZ
*Ripple output: < = 50mV
*Method: Wiring terminal
*Short Circuit Protection: Self recovering (can not short Long)
*Color: As Pictures Show
*Dimension:60*53*27mm (Approx.)
Package Content:
1*Converter
Note:The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
