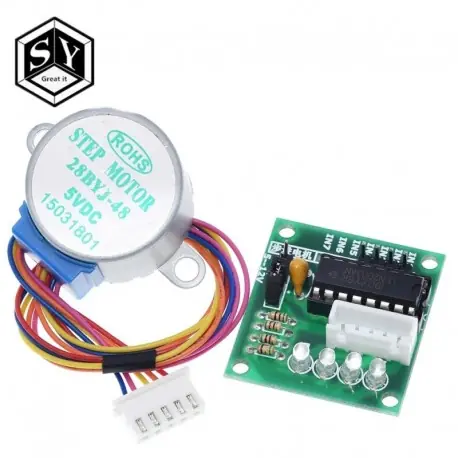

1LOTS Great IT 28BYJ-48-5V 4 phase Stepper Motor Driver Board ULN2003 for Arduino 1x Stepper motor 1 x ULN2003 Driver board
Rated Voltage: DC5V
4-phase
Reduction Ratio: 1/64
Step Torque Angle: 5.625/64
DC Resistance: 200±7% (25)
Insulation Resistance: >10M (500V)
Dielectric Strength: 600V AC / 1mA / 1s
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)
Board Size: Approx. 29 ×21 mm
Package Included:
1pcs X ULN2003 Driver board
1pcs X Stepper motor
