Leírás

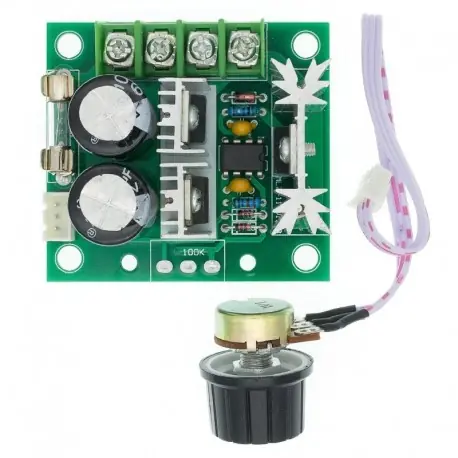

Állítható DC motor fordulatszám-szabályozó DC 12V-40V 400W 10A potenciométer PWM motorvezérlő modul 13kHz 24V 36V CCMHC CCMHCW
Adjustable DC Motor Speed Controller DC 12V-40V 400W 10A Potentiometer PWM Motor Controller Module 13kHz 24V 36V CCMHC CCMHCW
Features:
– DC Motor Speed Controller allows controlling speed of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle
– Fully adjustable from 10% -100% . The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load.
– The circuit also includes a 10A fuse, with reverse connection of power supply and control voltage over-voltage protection function.
Specifications:
– Input supply voltage: 12V-40VDC
– The maximum output power: 0.01-400W
– The maximum continuous output current :8A;
– The overload and short circuit protecting current is 10A
– PWM frequency: 13 kHz
– Duty Cycle adjustable: 10% -100%
– The 10A fuse with reverse connection of power supply and control voltage over-voltage protection function
– Item size:60 * 55 * 28mm
