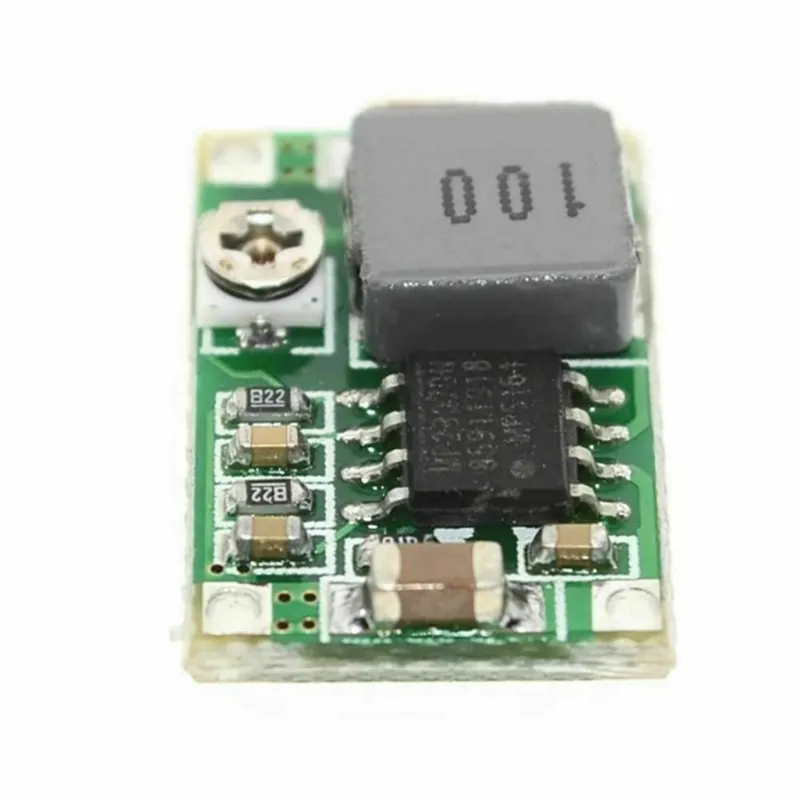

5x Super Mini DCDC Converter Step Down Module-Adjustable For Q7H9 Y7Y8
Description:Specification:Brand new and high quality
Application areas:DIY mobile power, automotive power supply, communication equipment, power, a variety of size and weight of the demanding requirements of the occasion.
Technical Parameters:Modular nature: non-isolated step-down
Rectification: Synchronous rectification
Input voltage: 4.75V-23V
Output voltage: 1.0V-17V
Output current: peak 3A, long time 1.8A
Conversion efficiency: 96% (highest)
Switching frequency: 340KHz
Output ripple: 30mV (no load)
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Operating temperature: -40 â„ to 85 â„
Peripheral dimensions: 17 * 11 * 3.8 (L * W * H) (mm)
Features: The use of one-piece forming power inductors and synchronous rectification control chip, smaller, more efficient.
Package Include:1 X pcs
SKU:QEV4234
