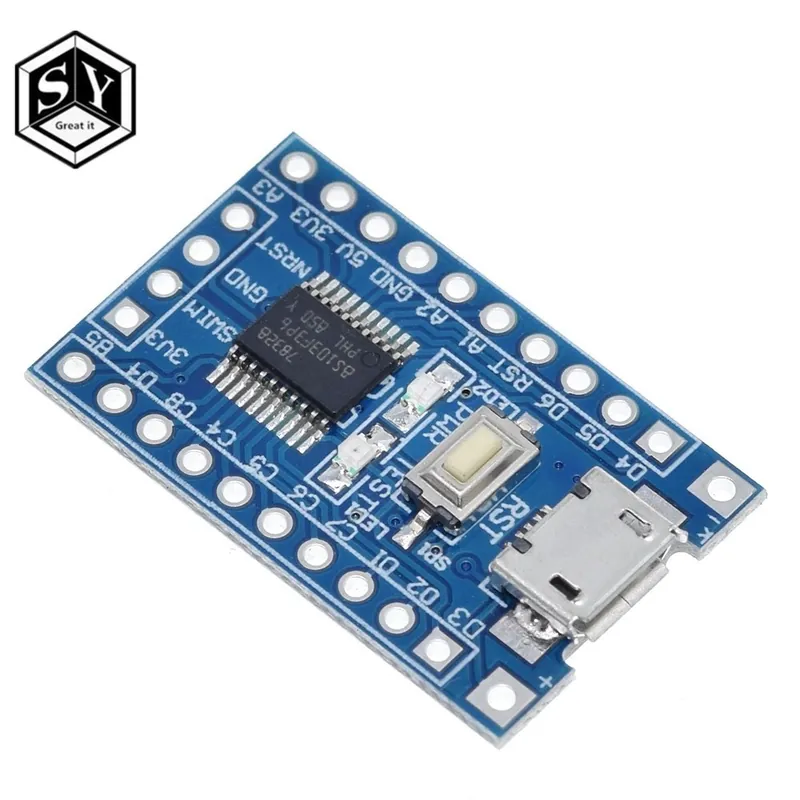

1PCS Great ITNew Chip STM8S103F3P6 system board STM8S STM8 development board minimum core board
Note: this is China post ordinary small packets, can only track in China, if you want a tracking number, trouble to pay the freight choose China post, thank you for your cooperation
STM8S core board of the highlights:
The development board using MicroUSB cable supply, compatible with smart phone lines, data lines is simple and easy to get, but not USB MINI line-powered, USB MINI line is not easy to find, has been gradually phased out. Other manufacturers of products are used in MINI-USB port, this is not applicable for customers.
Low price, user-friendly design, a full set of data, allowing you to save money, save time, effort, worry!
STM8S core board of the main features:
1. Use STM8S103F3P6 as the master IC.
2. You can use 2.54 pin on the board or power supply pad, the pad when using power supply, input voltage range 4.5V-15V, can output to the outside through pin 3.3V!
Note: 5V pin’s voltage is the input voltage of the module.
3. leads to all pins, the pins next to the pin marked the label, with a reset button, power LED, and the program demonstrates LED, small but perfectly formed.
4. Support SWIM debug mode.
