Leírás

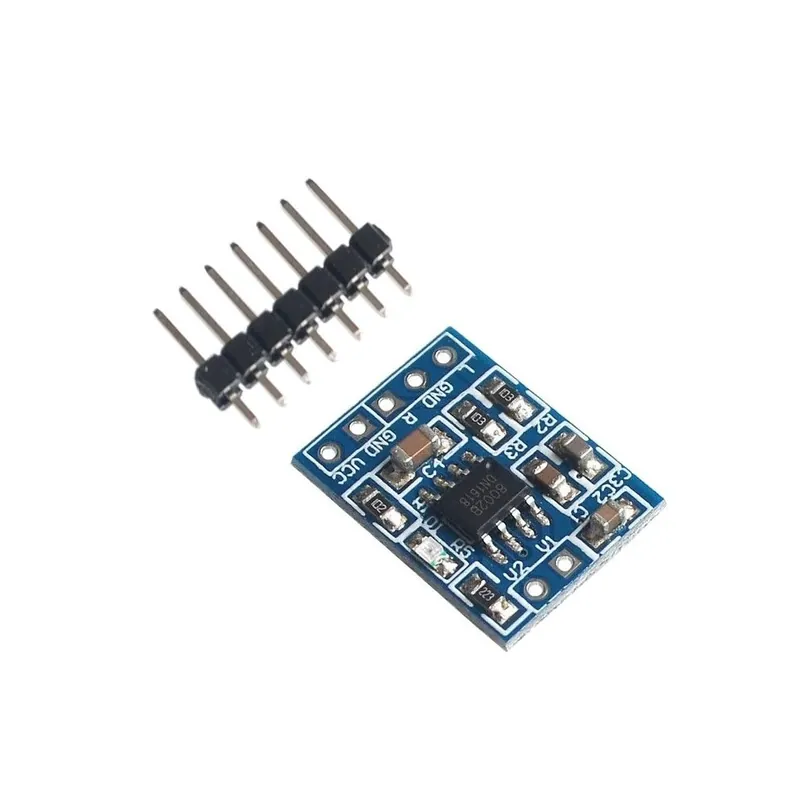

10 DB/LOT HXJ8002 teljesítményerősítő kártya mini audio hangerősítő modul csere PAM8403
10PCS/LOT HXJ8002 Power Amplifier Board Mini Audio Voice Amplifier Module Replace PAM8403
Description:
onboard HXJ8002 single channel 3W, BTL bridge connection audio power amplifier chip
working voltage :2.0-5 .5 V
Standby current: 0.6uA (typical value)
the input signal is a frequency is 1kHz, 8 loads; average output power is 1W condition,
the maximum distortion is 0.5%
the THD D <10% , while the frequency of the input is 1KHZ under different load conditions
the output power (typical): 3W (load 3); 2.5W (load 4); 1.5W (load 8)
board size: 19.8 (mm) x14.2 (mm)
