1PCS 2 series 7.4V lithium battery protection board 8A working current 15A current limit/Overcharge discharge protection
The attribute of the lithium battery protection board:
Model: HX – 2 s – D01 charging pressure range: 4.25 / – 0.05 v to 4.35 v
Size: 41 * 16 * 3.5 mm discharge voltage range: 2.5 / – 0.05 v to 3.0 v
Maximum working current: 8 a working temperature: – 40 – 50 °
Maximum instantaneous current: 10 a storage conditions: – 40 – 80 °
Static electricity: less than 10 ua useful life: more than 50000 hours
Resistance: less than 300 m Ω short circuit protection: to protect and restore must charge
Charging voltage: 8.4 V – 9 V

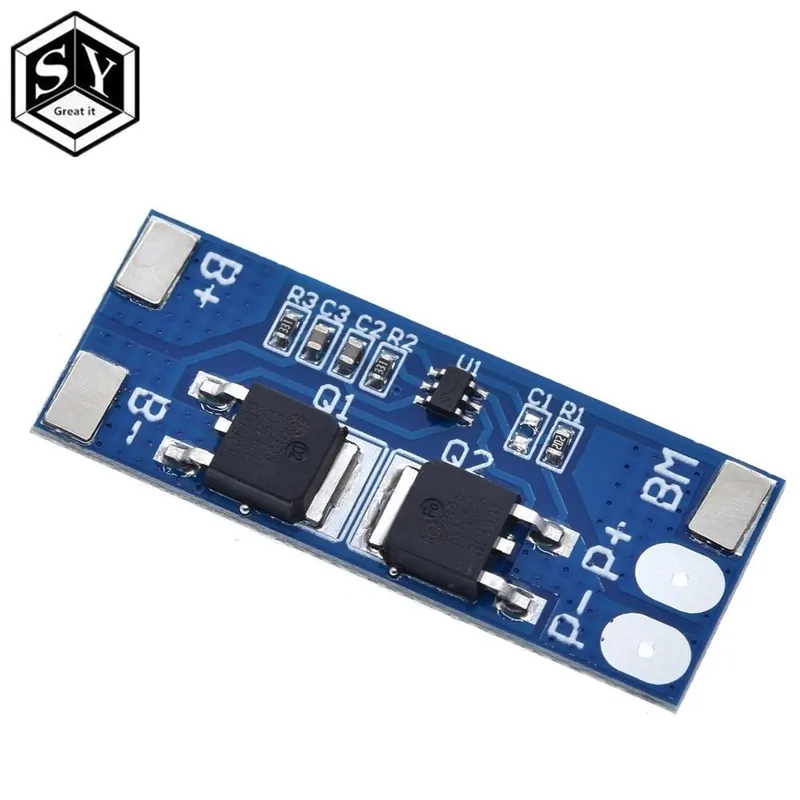

The protection plate size and device description;
The protection plate size for 41 * 16 * 3.5 mm
Welding point:
B. connect battery anode;
B. – connect battery cathode;
MB, connect battery 1 and 2 before the join points;
P. correct answer the charge/discharge (charging/discharging end sharing);
P. – answer the charge/discharge end negative (charging/discharging end sharing).
